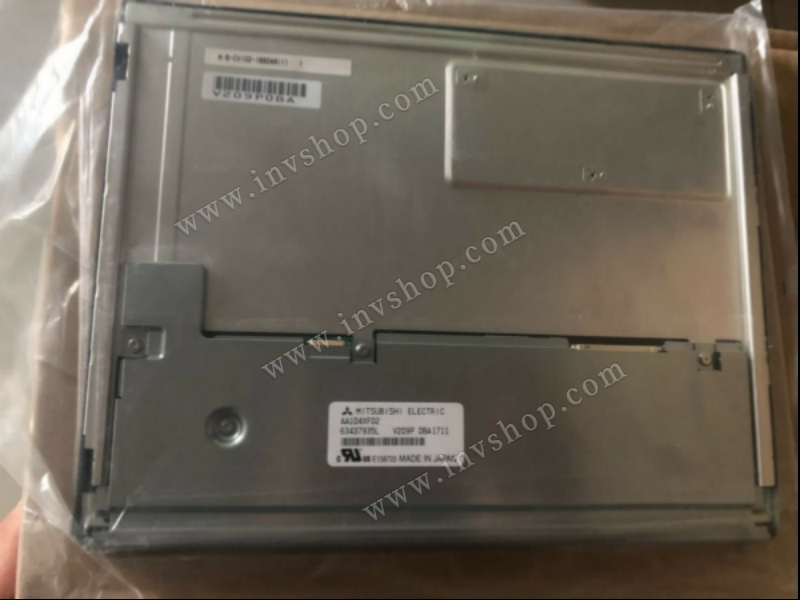

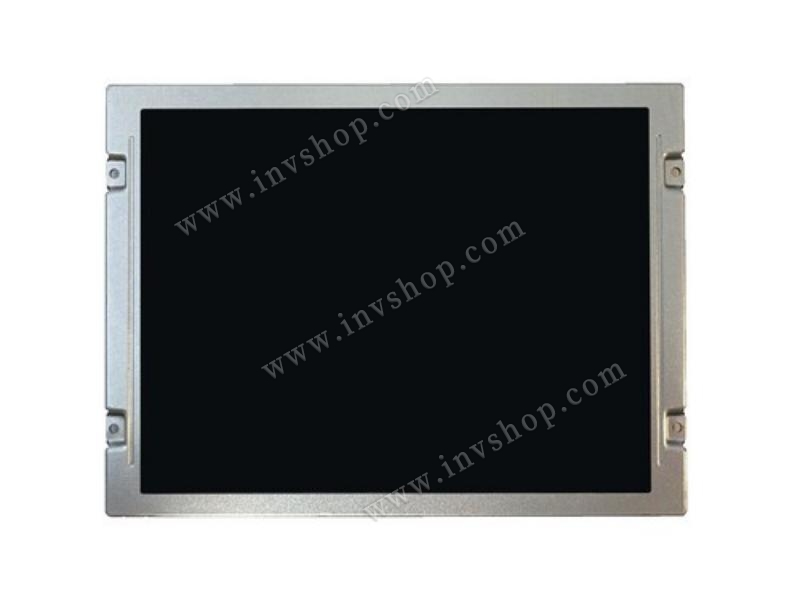

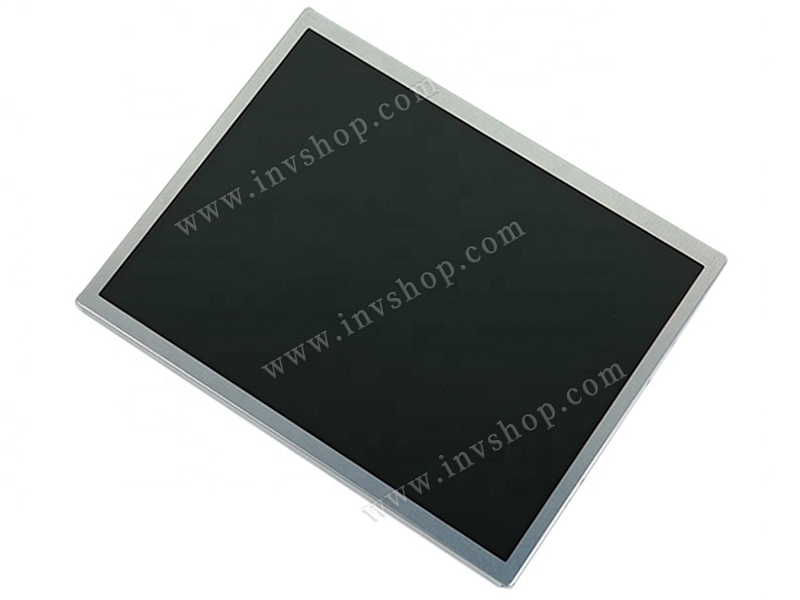

AA104XF02 Mitsubishi 10.4inch 1024*768 industry tft-lcd display
The Mitsubishi AA104XF02 is a 10.4-inch industrial-grade TFT-LCD panel. It features an XGA resolution (1024×768) for a sharp 4:3 image. Designed for demanding environments, this panel uses a modern WLED backlight with a long lifespan and a 20-pin LVDS digital interface.
Price: $222.00 $220.00 / piece
Calculate shipping price
WINNI (HK) ELECTRONIC CO., LIMITED
+86 13827441621
Invshop168
RM 3, 27/F HO KING COMM CTR NO 2-16 FA YUEN ST MONG KOK KL
All Categories
- Industrial LCD display
-
Industrial Products
- DC Servo Drive
- AC Servo Drive
- other
- Heidelberg
- FANUC
- IFM
- Meter
- CCD
- Membrane Keypad
- Film
- YOKOGAWA Module
- Card
- ABB
- MITSUBISHI
- FANUC
- KEYENCE
- BECKHOFF
- Honeywell
- HOLLYSYS
- FUJI servo drives
- HP
- solenoid valve
- thermostat
- Siemens adapter
- color oscilloscope
- Fujitsu connector
- CHELIC
- SMC
- CISCO Module
- INTEL
- Key board
- FAIRCHILD
- Motherboard
- Board
- Bearing
- other
- Control Panel
- Contactor
- Circuit
- OMRON
- Relay
- Controller
- Photoelectric Switch
- Photoelectric Sensor
- Original
- Fan
- Motor Driver
- Limit Switch
- Amplifier
- power supply
- LENZE
- Cable
- Encoder
- Sensor
- Transformer
- Fiber Optic Sensor
- Protection Relay
- Temperature Controller
- Proximity Switch
- Switch Sensor
- Siemens
- Industrial board
- HMI Touch Glass
-
HMI Full Machine Whole unit
- OMRON HMI Touch Panel
- Siemens HMI Touch Panel
- Mitsubishi HMI Touch Panel
- Allen-Bradley automation HMI Touch Panel
- DELTA HMI Touch Panel
- EVIEW DELTA HMI Touch Panel
- KINCO DELTA HMI Touch Panel
- HITECH HMI Touch Panel
- WEINTECK HMI Touch Panel
- TECVIEW HMI Touch Panel
- WEINVIEW HMI Touch Panel
- PRO-FACE HMI Touch Panel
- SIMATIC HMI Touch Panel
- AMPIRE HMI Touch Panel
- HEIDELBERG HMI Touch Panel
- PANASONIC HMI Touch Panel
- PATLITE HMI Touch Panel
- KYOCERA HMI Touch Panel
- KEYENCE HMI Touch Panel
- WEINVIEW HMI Touch Panel
- HITECH HMI Touch Panel
- FUJI HMI Touch Panel
- HAKKO HMI Touch Panel
- SCHNEIDER HMI Touch Panel
- SAMKOON touch panel
- other
- Module
- lcd inverter
- Membrane Keypad Switch
- Winni Touch Screens
- Frequency Inverter
- Servo Motor
- PLC
AA104XF02 Mitsubishi 10.4inch 1024*768 industry tft-lcd display
AA104XF02 Datasheets Download
Name: AA104XF02.pdfType
TFT-LCD
Brand
Mitsubishi
Model
AA104XF02
| Model: | AA104XF02 | Panel-type: | a-Si TFT-LCD, LCM |
| Size: | 10.4 inch | Resolution: | 1024(RGB)×768 (XGA) 123PPI |
| Display Area: | 210.4 × 157.8 (H×V) | Outline Size: | 230 × 180.2 × 10 (H×V×D) |
| Brightness: | 600 cd/m² (Typ.) | Contrast Ratio: | 700:1 (Typ.) (TM) |
| Viewing Angle: | 80/80/80/80 (Typ.)(CR≥10) | Operating Mode : | TN, Normally White, Transmissive |
| Support Color: | 262K/16.7M 40% NTSC | Response Time: | 4/12 (Typ.)(Tr/Td) ms |
| Signal Interface: | LVDS (1 ch, 6/8-bit) , Connector 20 pins | Backlight type: | WLED , 100K hours , With LED Driver |
| Touch Screen: | Without | Operating Temp.: | -30 ~ 80 °C |
| Model: | AA104XF02 | Panel-type: | a-Si TFT-LCD, LCM |
| Size: | 10.4 inch | Resolution: | 1024(RGB)×768 (XGA) 123PPI |
| Display Area: | 210.4 × 157.8 (H×V) | Outline Size: | 230 × 180.2 × 10 (H×V×D) |
| Brightness: | 600 cd/m² (Typ.) | Contrast Ratio: | 700:1 (Typ.) (TM) |
| Viewing Angle: | 80/80/80/80 (Typ.)(CR≥10) | Operating Mode : | TN, Normally White, Transmissive |
| Support Color: | 262K/16.7M 40% NTSC | Response Time: | 4/12 (Typ.)(Tr/Td) ms |
| Signal Interface: | LVDS (1 ch, 6/8-bit) , Connector 20 pins | Backlight type: | WLED , 100K hours , With LED Driver |
| Touch Screen: | Without | Operating Temp.: | -30 ~ 80 °C |
