KFU8-UFC-EX1.D FOR PEPPERL+FUCHS Isolated safety grid

KFU8-UFC-EX1.D FOR PEPPERL+FUCHS Isolated safety grid

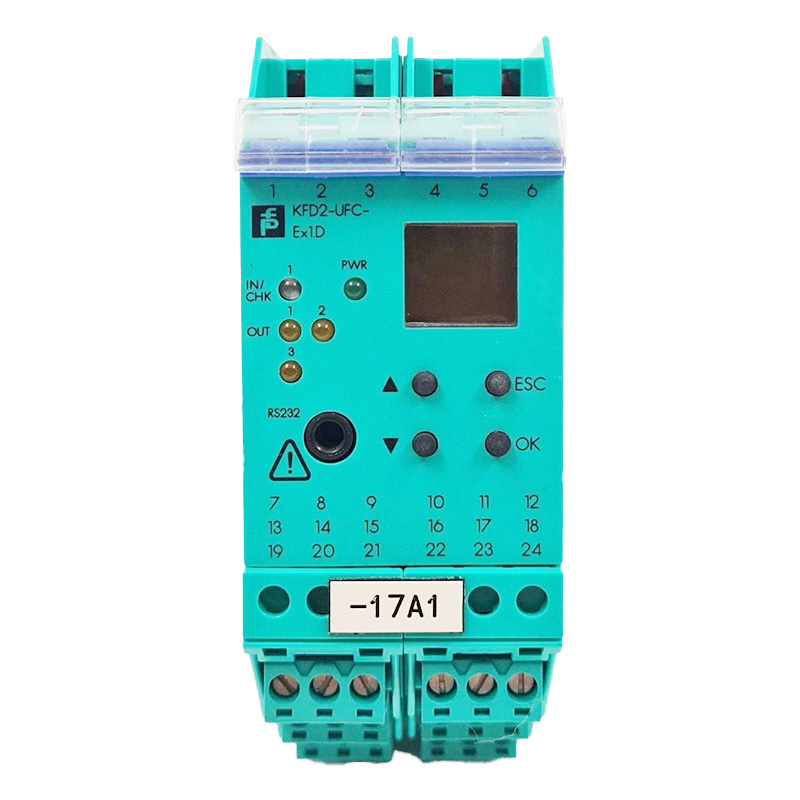

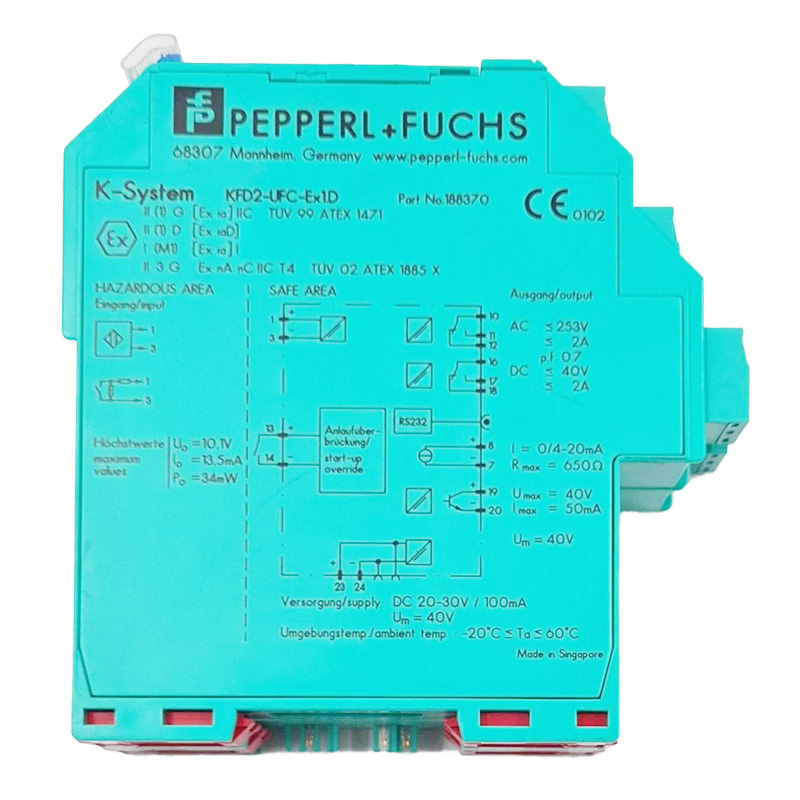

1、KFU8-UFC-EX1.D Product picture

2、KFU8-UFC-EX1.D Technical parameters

(1) Input characteristics:

· Input type: NAMUR sensor or dry contact, support mechanical contact pulse width>50µs.

· Input frequency range: 0.001Hz to 5000 hz, resolution ≤0.1%, accuracy ≤0.1%.

· Fault detection threshold: disconnection current ≤0.15mA, short circuit current >6.5mA.

(2) Output characteristics:

· Analog output: 0/4mA to 20mA, load capacity ≤650Ω, fault signal range ≤3.6mA or≥21.5mA.

· Switching outputs: 2 relay outputs (250V AC/2A, cosφ≥0.7) and 1 output without potential difference.

· Response delay: ≤200ms to ensure fast action.

(3) Electrical and environmental parameters:

· Supply voltage: 20V DC to 90V DC or 48V AC to 253V AC, power consumption ≤2.5VA.

· Working temperature: -20°C to +60°C, protection level IP20, suitable for industrial site environment.
